45 Degree Pipe Elbows
Product Introduction

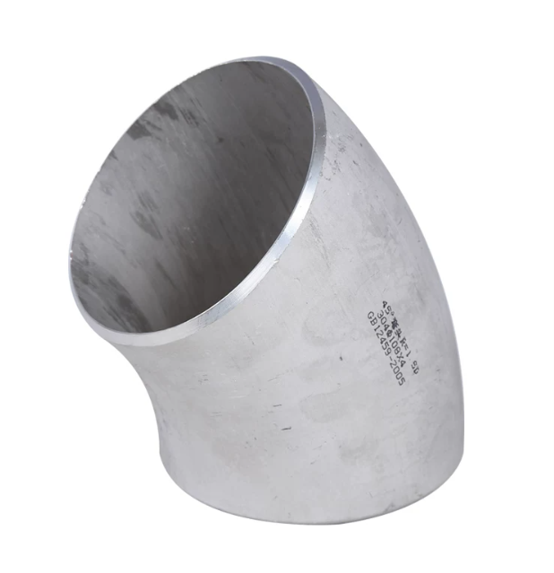

45 Degree Pipe Elbow is a mainstream piping fitting to change pipeline direction at 45°, featuring mild flow resistance compared with 90° elbows, widely used for gentle pipeline deflection.
Product Types
- Long Radius Elbow (LR, R=1.5D): Most common for general industrial pipelines
- Short Radius Elbow (SR, R=1D): Compact structure for limited mounting space
Applicable Standards
- ASME B16.9
- EN 10253
- GB/T 12459, GB/T 13401
- MSS SP-75
Available Materials
- Carbon Steel: A234 WPB, P245GH, Q235B
- Stainless Steel: A403 WP304, WP316L
- Alloy Steel: A234 WP11, WP22
Technical Specifications
- Size Range: 1/2” – 48” | DN15 – DN1200
- End Connection: Butt Weld(BW), Socket Weld(SW), NPT/BSP Threaded
- Pressure Rating: Class 150~Class 2500, PN6~PN160
Application Scope
Water treatment, petrochemical, HVAC, fire fighting, power plant and natural gas transmission pipelines.
Custom-made 45° elbows according to drawings and special requirements are available.
