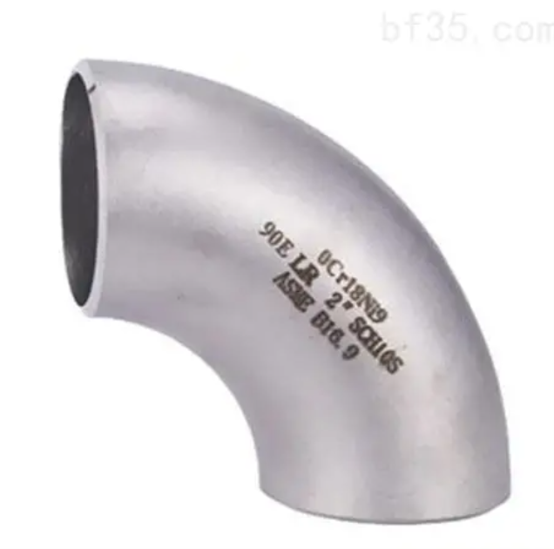

90 Degree Pipe Elbows
Product Overview
Main Types
- Long Radius Elbow (LR, R=1.5D)
Standard choice, small flow resistance, used for most industrial piping.
- Short Radius Elbow (SR, R=1D)
Compact dimension, applied in narrow installation space.
Implementation Standards
- ASME B16.9
- EN 10253
- GB/T 12459, GB/T 13401
- MSS SP-75
Available Materials
- Carbon Steel: A234 WPB, P245GH, Q235B
- Stainless Steel: A403 WP304, WP316L
- Alloy Steel: A234 WP11, WP22
Technical Data
- Size: 1/2”~48”, DN15~DN1200
- End Type: BW(Butt Weld), SW(Socket Weld), NPT/BSP Threaded
- Pressure Class: Class150~Class2500, PN6~PN160
Application
Product Overview
90 Degree Pipe Elbow is the most widely used pipe fitting to turn pipeline vertically at right angle for route layout adjustment.
Main Types
- Long Radius Elbow (LR, R=1.5D)
Standard choice, small flow resistance, used for most industrial piping.
- Short Radius Elbow (SR, R=1D)
Compact dimension, applied in narrow installation space.
Implementation Standards
- ASME B16.9
- EN 10253
- GB/T 12459, GB/T 13401
- MSS SP-75
Available Materials
- Carbon Steel: A234 WPB, P245GH, Q235B
- Stainless Steel: A403 WP304, WP316L
- Alloy Steel: A234 WP11, WP22
Technical Data
- Size: 1/2”~48”, DN15~DN1200
- End Type: BW(Butt Weld), SW(Socket Weld), NPT/BSP Threaded
- Pressure Class: Class150~Class2500, PN6~PN160
Application
Petrochemical, natural gas, power plant, water supply, HVAC, fire protection and chemical industry pipelines. Custom processing per drawings & special specifications is supported.
Relate Ptoduct
-
Concentric Reducer
-
Eccentric Reducer
-
90 Degree Pipe Elbows
-
45 Degree Pipe Elbows
-
180 degree pipe elbows
-
Welding Flange
-
Threaded Flange
-
Socket Weld Flange
-
Slip On Neck Flange
-
Lap Joint Flange
-
ISO DIN EN1092-1flange
-
Flat-Face (FF) Flange
-
Blind Flange
Specifications
| Item | Range |
|---|---|
| Size | 1/2″ – 48″ (DN15 – DN1200) |
| Wall thickness | SCH10 – SCH160, STD, XS, XXS |
| Standard | ASME B16.9 (>= 2″), B16.28 (small bore), DIN 2605, JIS B2311, GB/T 12459 |
| Materials | A234 WPB carbon, A420 WPL6 low-temp, A403 WP304/304L/316/316L stainless |
| Certificates | EN 10204 3.1 standard; 3.2 third-party inspection on request |
Applications of 90 Degree Elbows
The 90° elbow is the workhorse of pipe routing: it turns flow around obstacles, connects horizontal runs to vertical risers, and corners piping racks. Long radius (LR, R=1.5D) is the default for process lines – lower pressure drop and erosion. Short radius (SR, R=1D) fits tight clearances in skids and structural constraints where space outweighs pressure loss.
How to Choose LR vs SR for a 90° Elbow
Choose LR when: the line carries abrasive or high-velocity media, pressure drop matters, or the specification calls for it by default. Choose SR when: physical space is tight (equipment skids, marine engine rooms), or the line is short and low-velocity. When in doubt, LR – it is the safer engineering choice and costs little more.
Ordering & Custom Options
Standard elbows ship from stock in A234 WPB and WP304/316. Non-standard requirements – extra-heavy walls, 3D bends, special angles, clad fittings – are manufactured to your drawing in 15-30 days. Every elbow ships size- and heat-stamped with EN 10204 3.1 certificates. Send your size, schedule and material for a fast quote.
FAQs
What is the radius of a long radius 90° elbow? 1.5 times nominal pipe size (a 4″ LR elbow has a 6″ centerline radius). Short radius is 1 x NPS.
Do you supply 90° elbows in stainless steel? Yes – A403 WP304/304L/316/316L seamless and welded, SCH10-SCH80 standard schedules.
