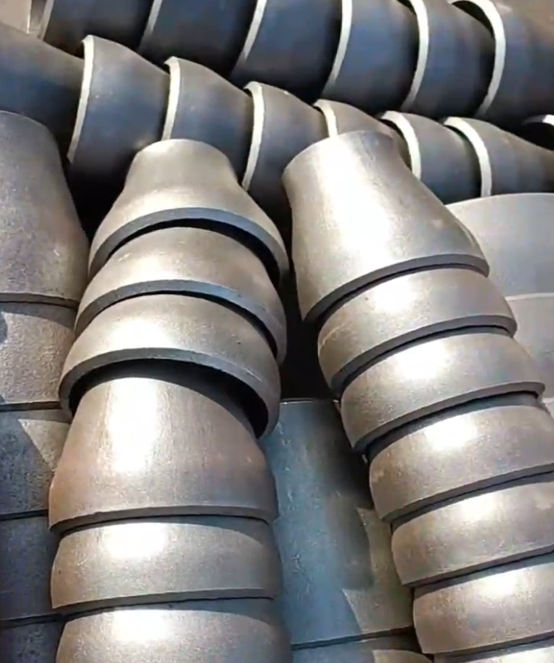

Butt Weld Concentric Reducer for Industrial Piping
A concentric reducer is a tapered pipe fitting used to connect pipes of different diameters while keeping both pipe centerlines aligned. This smooth, symmetrical transition makes it a practical choice for vertical pipelines, pump discharge lines and straight process piping where balanced flow and compact installation are important.
We supply butt weld concentric reducers in carbon steel, stainless steel and alloy steel for oil and gas, petrochemical, power generation, water treatment, HVAC and general industrial piping projects. Standard and custom dimensions are available to match project drawings and piping specifications.
Concentric Reducer Specifications
- Standards: ASME B16.9, EN 10253, MSS SP-75, GB/T 12459 and GB/T 13401
- Size range: 1/2 inch to 48 inch (DN15 to DN1200)
- Pressure range: Class 150 to Class 2500 / PN6 to PN160
- Connections: Butt weld (BW), with socket-weld or threaded options for suitable sizes
- Materials: Carbon steel, stainless steel and alloy steel
- Common grades: ASTM A234 WPB, A403 WP304/WP316L, A234 WP11/WP22, P245GH and Q235B
Why Use a Concentric Pipe Reducer?
Because the large and small ends share one centerline, a concentric pipe reducer provides an even transition around the full circumference. The tapered profile helps limit abrupt changes in velocity and reduces unnecessary turbulence compared with a sudden diameter change.
- Maintains pipe centerline alignment
- Supports smooth flow through a gradual diameter transition
- Suitable for vertical piping and many straight horizontal runs
- Available in seamless, welded and fabricated configurations according to size and specification
- Can be produced to project-specific dimensions and material requirements
Carbon Steel and Stainless Steel Reducers
A carbon steel concentric reducer, including ASTM A234 WPB, is widely specified for pressure piping and general industrial service. For applications requiring corrosion resistance, a stainless steel concentric reducer in ASTM A403 WP304 or WP316L may be selected. Alloy steel grades such as A234 WP11 and WP22 are also available for applicable high-temperature service requirements.
Material selection should be confirmed against the conveyed medium, design temperature, pressure, corrosion allowance and the governing project standard. Tell us the required material grade, schedule or wall thickness, end diameters and quantity so the quotation can be matched to your specification.
Concentric vs. Eccentric Reducer
A concentric reducer keeps the inlet and outlet on the same centerline. An eccentric reducer has one flat side and offset centerlines, which can help prevent air or liquid pockets in certain horizontal lines. The correct type depends on pipe orientation, pump arrangement and process design.
Ordering a Custom Concentric Reducer
For an accurate quotation, provide the nominal pipe sizes, wall thickness or schedule, material grade, applicable standard, quantity and any inspection or coating requirements. Drawings are recommended for non-standard reducers. We can review requirements for custom concentric reducers and bulk project orders.
Frequently Asked Questions
Which standard is commonly used for a butt weld concentric reducer?
ASME B16.9 is commonly specified for factory-made wrought butt-welding fittings. EN 10253, MSS SP-75 and relevant GB standards are also available according to the project.
What information is needed for a reducer quotation?
Please provide the large-end and small-end sizes, schedule or wall thickness, material grade, standard, quantity and required documentation. Add a drawing when the dimensions are non-standard.
Can you supply both carbon steel and stainless steel reducers?
Yes. Available options include ASTM A234 WPB carbon steel and ASTM A403 WP304/WP316L stainless steel, together with selected alloy steel grades.
